WHICH ECU FOR ME?

​


Link has two complementary engine management platforms to give you the ultimate flexibility to suit your performance goals and budget.

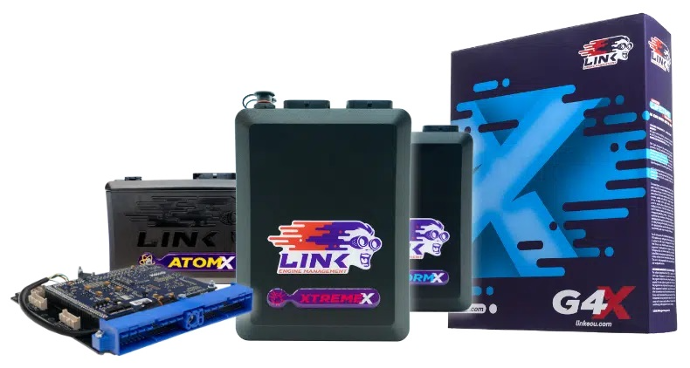

G4X

Link's race-proven power house, G4X has a very modern architecture that is great value, easy to install and highly reliable.

G4X is still the platform we recommend for a wide range of applications. It is the go-to solution for all the engines and builds it currently supports, and will be manufactured and fully backed for years to come.

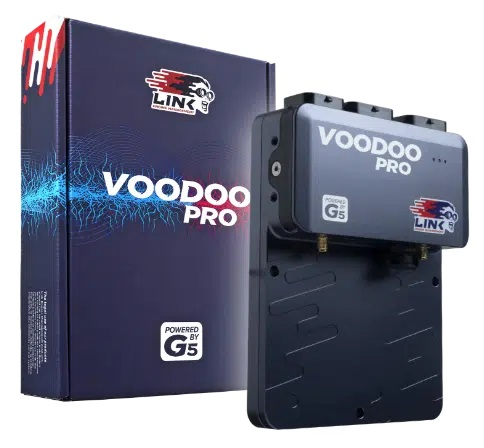

G5 Voodoo

G5 Voodoo is Link's premium platform for advanced engines that require direct injection, high injector, input or output counts, or advanced processing and communication.

We recommend G5 if you need direct injection*, have over 8 injectors, are after extra inputs and outputs, or for new features like GPS and Wi-Fi.

*Direct injection requires an external OEM or aftermarket driver boxx

G5 VoodooG4X ECU Range
OUTPUTSG5 Voodoo ProAtomXMonsoonXStormXXtremeXFuryXPlug-inX
Injection Drives16‡448888†
Run DI via a Driver Box
------
Ignition Drives12‡4488

Auxiliary Outputs14-30#468-16#10-18#10-16#16†
+5V Sensor Power Supply






INPUTSG5 Voodoo ProAtomXMonsoonXStormXXtremeXFuryXPlug-inX
Digital Inputs102488/10*8/10*11†
Temperature Inputs4223444†
Analogue Inputs1434811912†
Trigger Inputs2222222
Knock Inputs2 Channel1 Channel1 Channel2 Channel2 Channel2 Channel2 Channel†

† Check specific pinout for number of I/Os exposed
* 2 inputs required when using 2nd CAN Bus

‡ G5 Voodoo Pro has 12 inj, 8 ign, plus 4 multipurpose (inj, ing, aux) drives (24 total)
# Number of Auxiliaries depends on number of unused Inj/Ign drives available

COMMUNICATIONSG5 Voodoo ProAtomXMonsoonXStormXXtremeXFuryXPlug-inX
CAN Bus2 Channel1 Channel1 Channel1 Channel1/2 Channel*1/2 Channel*2 Channel
Wi-Fi-------
USB Tuning ConnectionUSB-CUSB-MiniBUSB-MiniBUSB-AMP6USB-AMP6USB-AMP6USB-AMP6
DATA LOGGINGG5 Voodoo ProAtomXMonsoonXStormXXtremeXFuryXPlug-inX
Onboard Logging Memory512MB512MB512MB512MB512MB512MB512MB
Maximum Total Logging Rate100kHz100kHz100kHz100kHz100kHz100kHz100kHz
Logging Channels250250250250250250250
FEATURESG5 Voodoo ProAtomXMonsoonXStormXXtremeXFuryXPlug-inX
Global Positioning System (GPS)------
E-throttle ControlDual---SingleSingleSingle
3 Axis Accelerometer---
CAN Keypad Control
VVT Control-
Open or Closed Loop Boost ControlBothOpenBothBothBothBothBoth
Lambda Sensor ControlDual----Single-
Flex Fuel
Trigger Oscilloscope
Closed Loop Lambda Auto Mode
Dual Closed Loop Lambda-
CAN Lock------
MOTORSPORTG5 Voodoo ProAtomXMonsoonXStormXXtremeXFuryXPlug-inX
Nitrous Control--
Launch Control-
Anti-lag-
Cruise Control---
Traction Control---
Race Timer and Power Management--
Gear Shift ControlLimited
Paddle Shift Control-

​

Link ECU Comparison Chart
